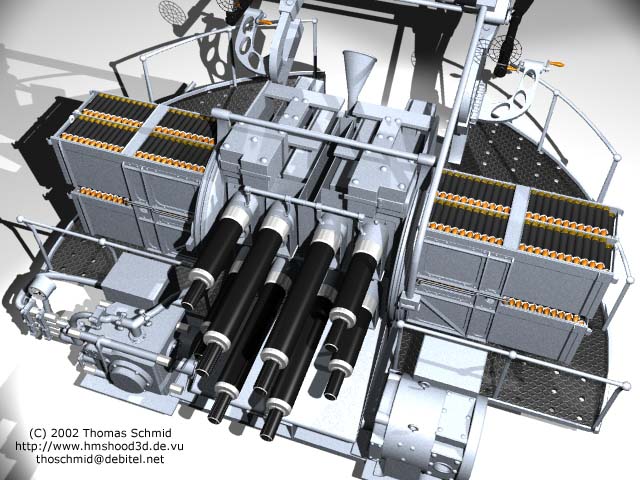

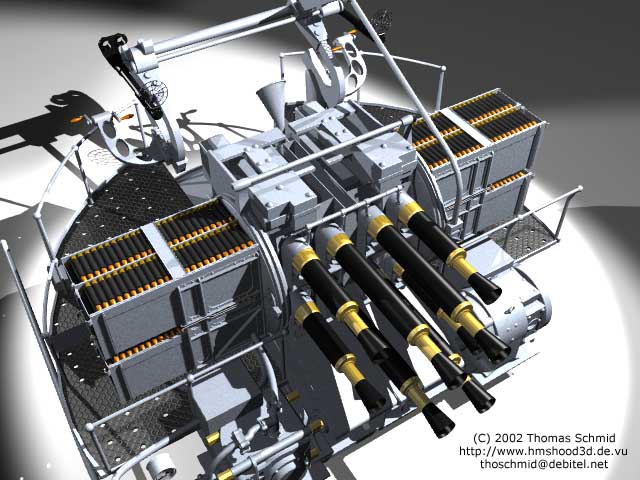

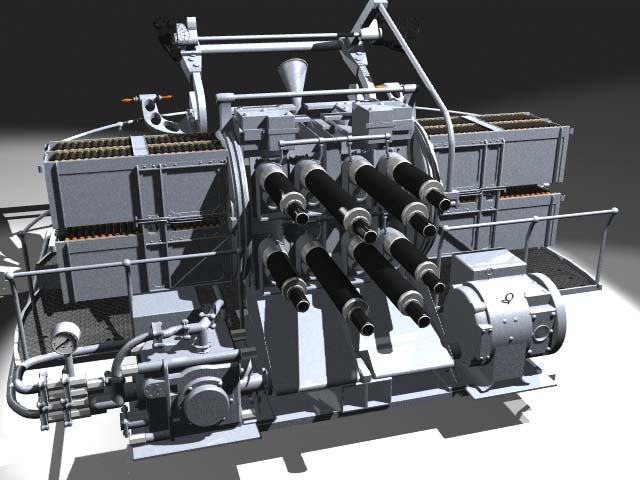

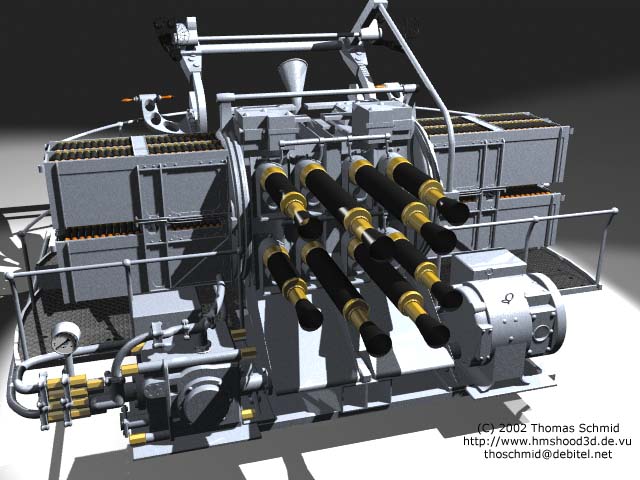

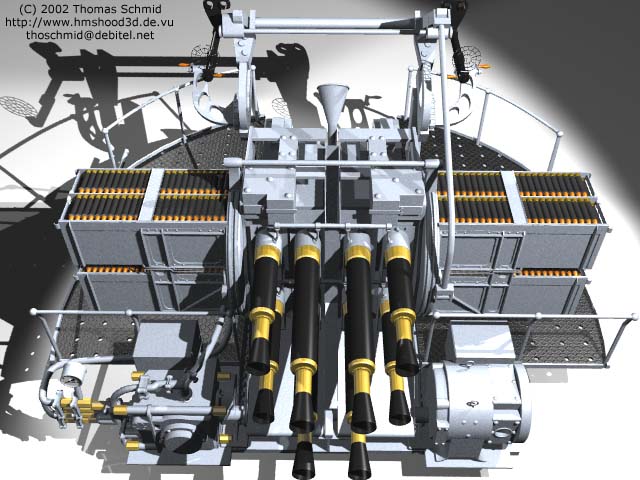

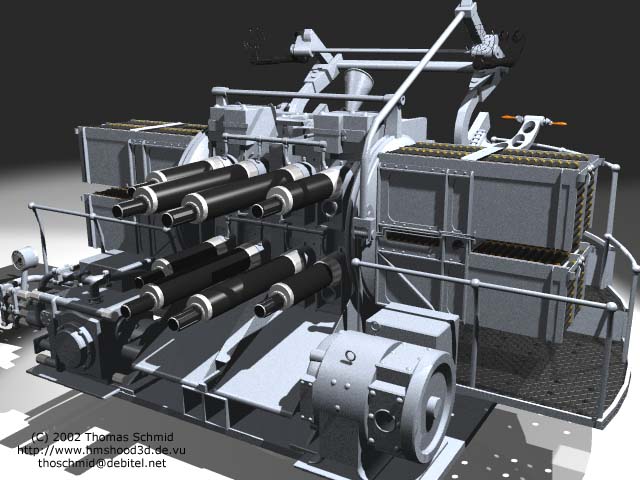

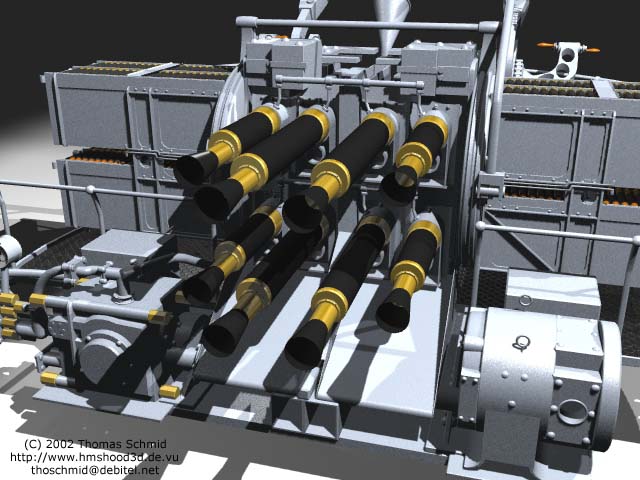

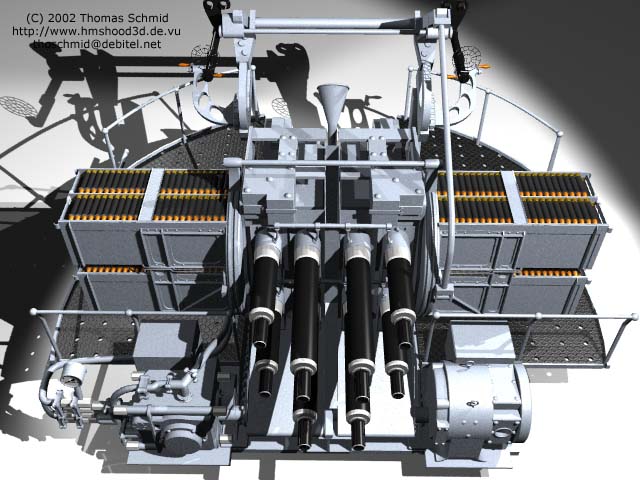

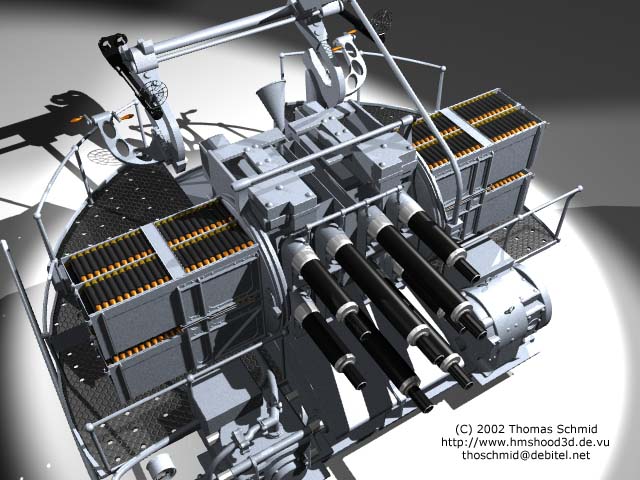

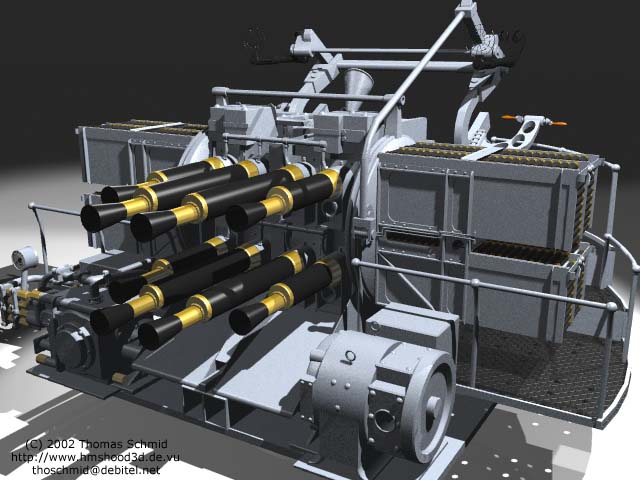

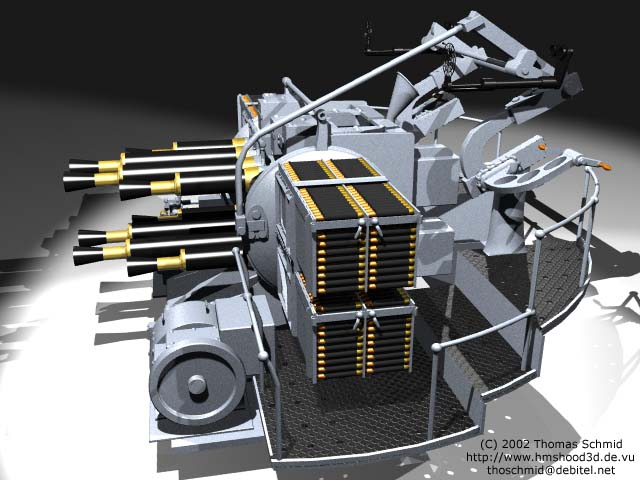

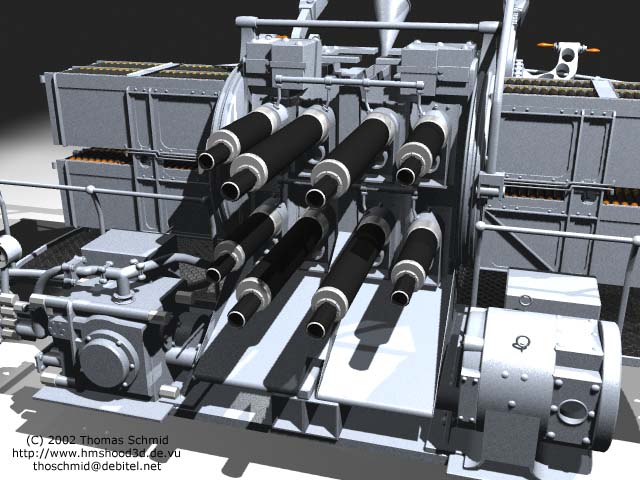

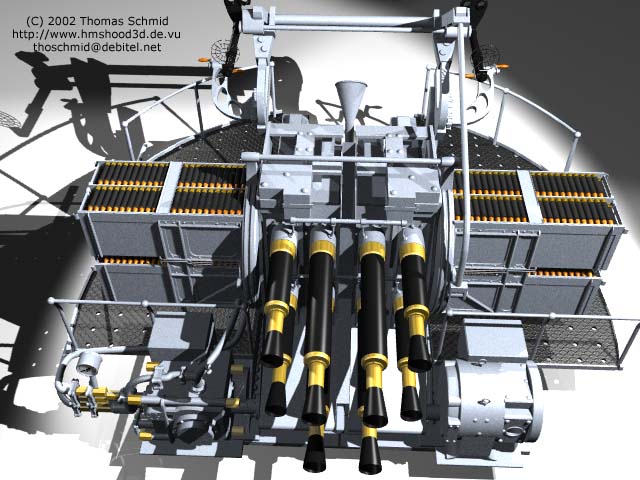

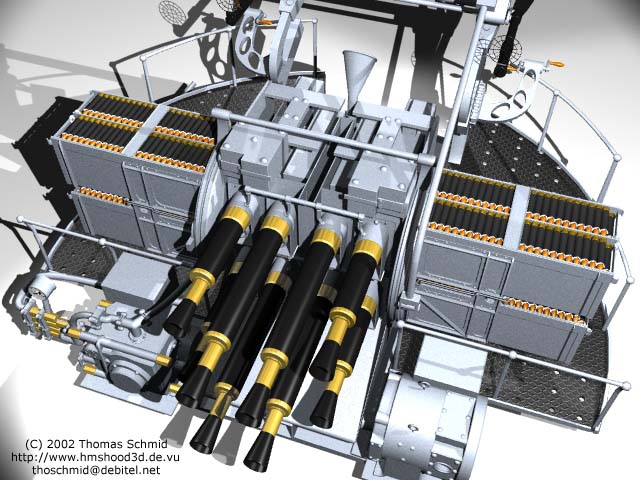

Above images showing the layout of the pompom guns (Mk V mounting) fitted in 1931 abreast fore funnel.

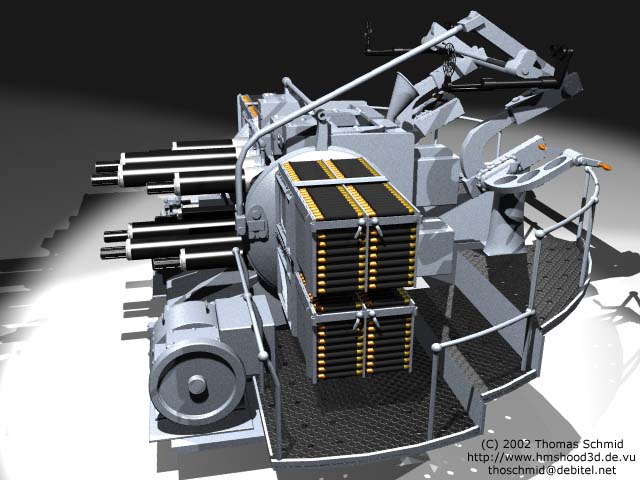

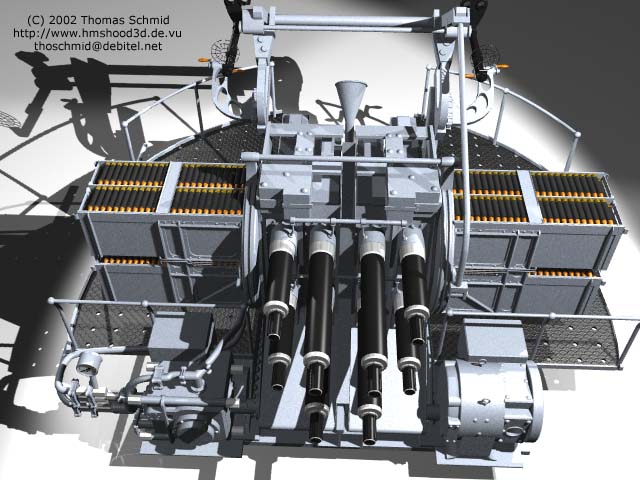

The second images showing the pompom guns (Mk VI mounting) fitted in 1937 on the roof of a seperate bandstand behind the boatsdeck.
